Multi-Scale Finite Element Analysis of Long-Span Power Transmission Steel Tubular Tower Structures: A Technical Monologue

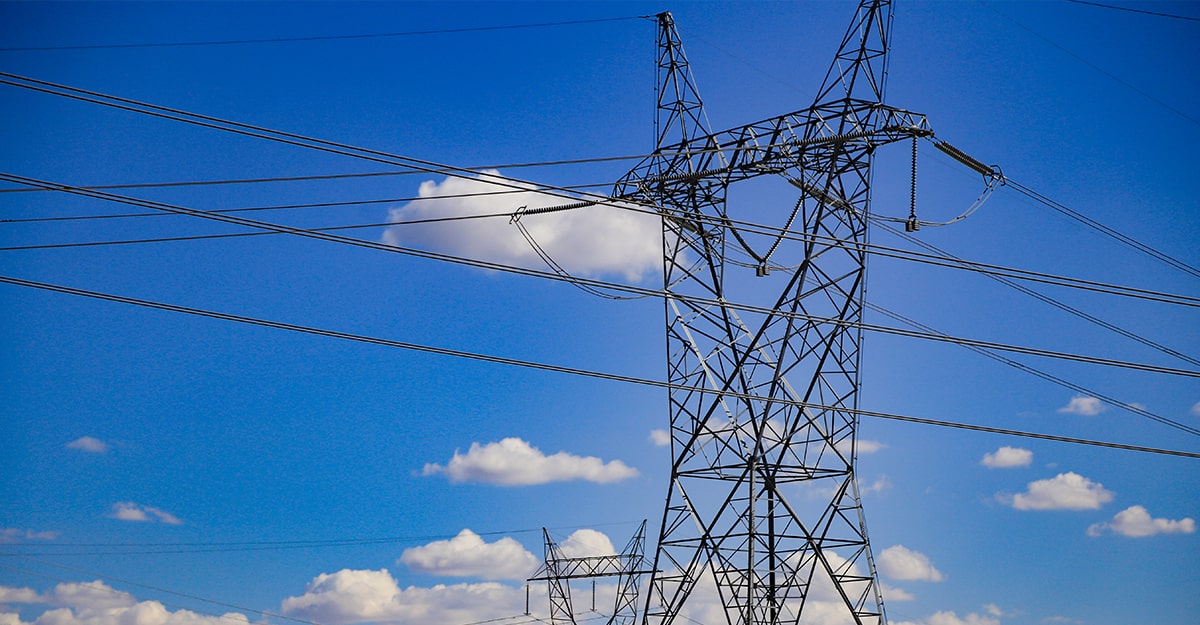

The structural integrity of a long-span power transmission tower—those giants crossing estuaries, valleys, or wide rivers—is not merely a question of static strength. It is a complex narrative of how energy travels from a microscopic grain boundary in the ASTM A709-50W steel up to the macroscopic aeroelastic vibrations of the conductor wires. When we approach the technical analysis of these structures, we must abandon the simplistic view of a truss and embrace a multi-scale finite element (FE) framework.

Thinking about this, the challenge isn’t just the sheer height of the tower, which can exceed 300 meters, but the transition of physics. At the global scale, we deal with wind-induced dynamics and geometric nonlinearity (P−Δ effects). At the local scale, we deal with the stress concentrations at the K-joints and Y-joints of the steel tubes. If we model the entire tower with solid elements, the computational cost becomes an infinite abyss; if we use only beam elements, we lose the reality of local buckling and joint fatigue. The solution is the “sub-modeling” or “multi-scale” bridge.

The Metallurgical Pulse: Material Definition at Scale

Before we even mesh the geometry, we have to consider the material. For long-span towers, ASTM A709-50W (Weathering Steel) is the silent protagonist. It offers a yield strength of 345 MPa, but its real value is its ductility and atmospheric corrosion resistance. In a multi-scale analysis, the material model must transition from a linear elastic assumption in the global frame to a nonlinear, strain-hardening plastic model at the connection nodes.

Chemical and Mechanical Baseline for Analysis

---

The Global Scale: Macro-Dynamic Response

In my mind, the tower starts as a skeletal spine. We use Timonshenko beam elements for the primary legs and bracing. Why? Because the shear deformation in thick-walled steel tubes cannot be ignored as we move toward the base. At this scale, the primary concern is the Fluid-Structure Interaction (FSI). The wind isn’t just a force; it’s a turbulent field. We apply a Davenport or Kaimal power spectrum to simulate the stochastic nature of wind gusts.

As the tower sways, the conductors act as massive pendulums. The coupling effect between the tensioned wires and the stiff steel tower creates a “tuned mass” effect that can either dampen or amplify the vibration. We observe the Geometric Nonlinearity. Every millimeter of lateral displacement increases the moment arm of the vertical gravity load. In our analysis, we utilize the Newton-Raphson iteration method to solve the equilibrium equations at each time step of the wind simulation.

---

The Mesoscopic Transition: The Joint Problem

This is where the multi-scale approach becomes elegant. While the rest of the tower is modeled as lines (beams), the critical joints—where four or five steel tubes converge—are modeled as Shell Elements (S4R).

Imagine the flow of stress. It travels down the bracing, enters the joint, and must redistribute around the circumference of the main leg. If the wall thickness isn’t sufficient, we see “ovalization” of the tube. This is a local buckling phenomenon that a beam model would simply miss. We use Multi-Point Constraints (MPC) to link the beam elements to the shell elements. This ensures the compatibility of displacements and the transmission of forces and moments without creating artificial “hard spots” in the model.

Nodal Refinement Parameters

---

The Micro Scale: Weldment and Fatigue

At the deepest level of the analysis, specifically at the heat-affected zone (HAZ) of the welds, we encounter the risk of fatigue. Long-span towers are subject to millions of low-amplitude vibration cycles. We take the displacement field from the meso-scale shell model and apply it as a boundary condition to a highly refined Solid Element model of the weld itself.

Here, we aren’t just looking at stress; we are looking at the Stress Intensity Factor (K). We simulate the initiation of micro-cracks using Extended Finite Element Method (XFEM). This allows the crack to grow through the mesh independent of the element boundaries. For our A709-50W tubes, the “self-healing” patina layer also plays a role here, as it prevents surface pitting that could act as a crack initiator.

---

Why Our Engineering Approach Wins

When we design these structures, we aren’t guessing. We are providing a digital twin of the tower.

1. Material Synergy: We leverage the high strength-to-weight ratio of our steel tubes, allowing for taller towers with smaller footprints.

2. Accuracy: By using multi-scale FEA, we identify potential failure points (like local chord face plastification) that traditional design codes often overlook.

3. Optimization: We can reduce the wall thickness in non-critical zones by 10−15%, saving hundreds of tons of steel on a long-span crossing without sacrificing the safety factor.

---

Technical Requirements for Implementation

For a successful multi-scale execution, the following criteria are mandatory in our workflow:

• Modal Analysis: We identify the first 50 vibration modes to ensure we haven’t missed a resonance frequency with the wind or the conductors.

• Buckling Analysis: Both linear (Eigenvalue) and nonlinear (Riks method) buckling analyses are performed to verify the stability of the slender tubular legs.

• Corrosion Modeling: We degrade the thickness of the shell elements in the model over a simulated 50-year period to predict the end-of-life structural state.

Conclusion: The Synthesis of Strength and Science

The long-span transmission tower is a masterpiece of equilibrium. Through multi-scale finite element analysis, we bridge the gap between the microscopic grain of the steel and the massive scale of the river crossing. Our company stands at this intersection, providing not just the raw ASTM A709-50W steel tubes, but the computational certainty that these structures will remain standing through the storms of the next century.
